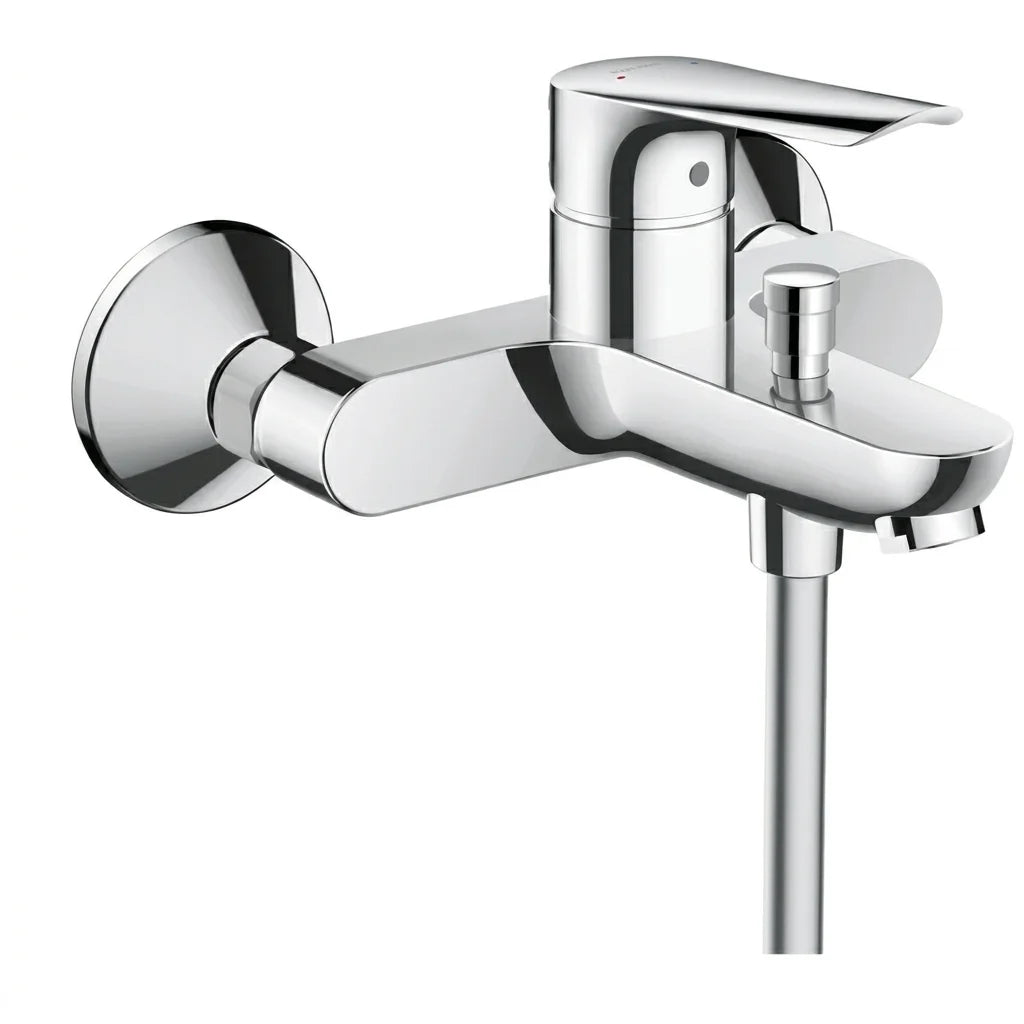

Hansgrohe Logis E Single Lever Bath Mixer (Chrome) 71434009 / 71403019

Hansgrohe Logis E Single Lever Bath Mixer (Chrome) 71434009 / 71403019

Description:

The Hansgrohe Logis E Single Lever Bath Mixer is a wall-mounted exposed bath mixer with two functions, ceramic cartridge and automatic-reset diverter. Finished in Chrome, it provides control of the bath outlet and hand shower connection from a single lever.

Key Features:

• Two Functions: Provides separate control for the bath spout and hand shower.
• Single-Lever Control: Ceramic cartridge allows smooth adjustment of water flow and temperature.
• Automatic Diverter: Automatically resets to the bath outlet when the water is turned off.
• Adjustable Temperature Limitation: Allows the maximum temperature to be adjusted during installation.
• Non-Return Valve: Helps prevent backflow within the water connection.

Specifications:

• Brand: Hansgrohe
• Series: Logis E
• Model / SKU: 71434009 / 71403019
• Finish: Chrome
• Product Type: Single Lever Bath Mixer
• Installation Type: Exposed / Wall-Mounted
• Functions: 2
• Control: Single Lever

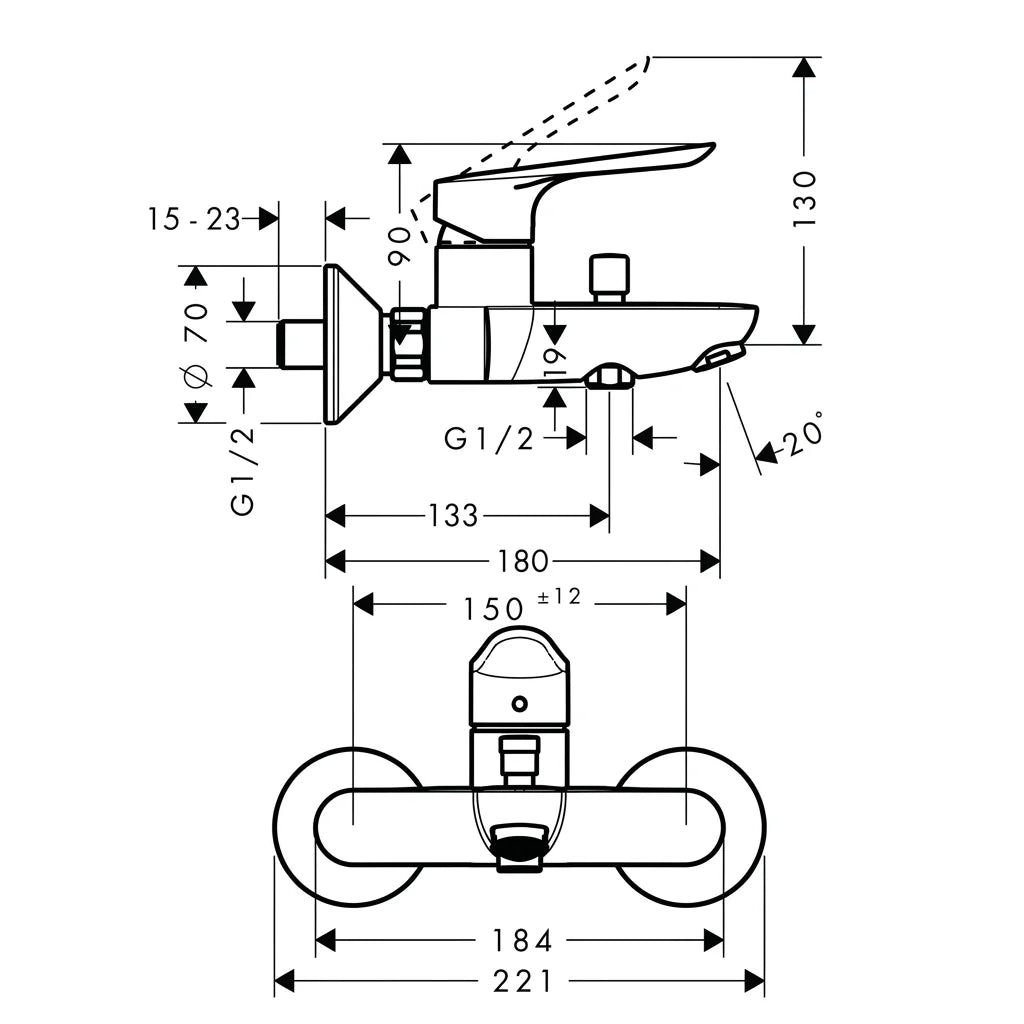

• Projection: 194 mm
• Centre Distance: 150 ± 12 mm
• Cartridge: Ceramic
• Diverter: Automatic Reset
• Spray Type: NormalSpray
• Maximum Flow Rate: 20.9 l/min at 3 bar
• Maximum Hand Shower Flow Rate: 4.9 l/min at 3 bar
• Connection Type: S-connections
• Connection Dimension: DN15
• Operating Pressure: 1–10 bar
• Temperature Limitation: Adjustable
• Non-Return Valve: Yes
• Silencer: Yes
• WELS Rating: 2 Ticks
