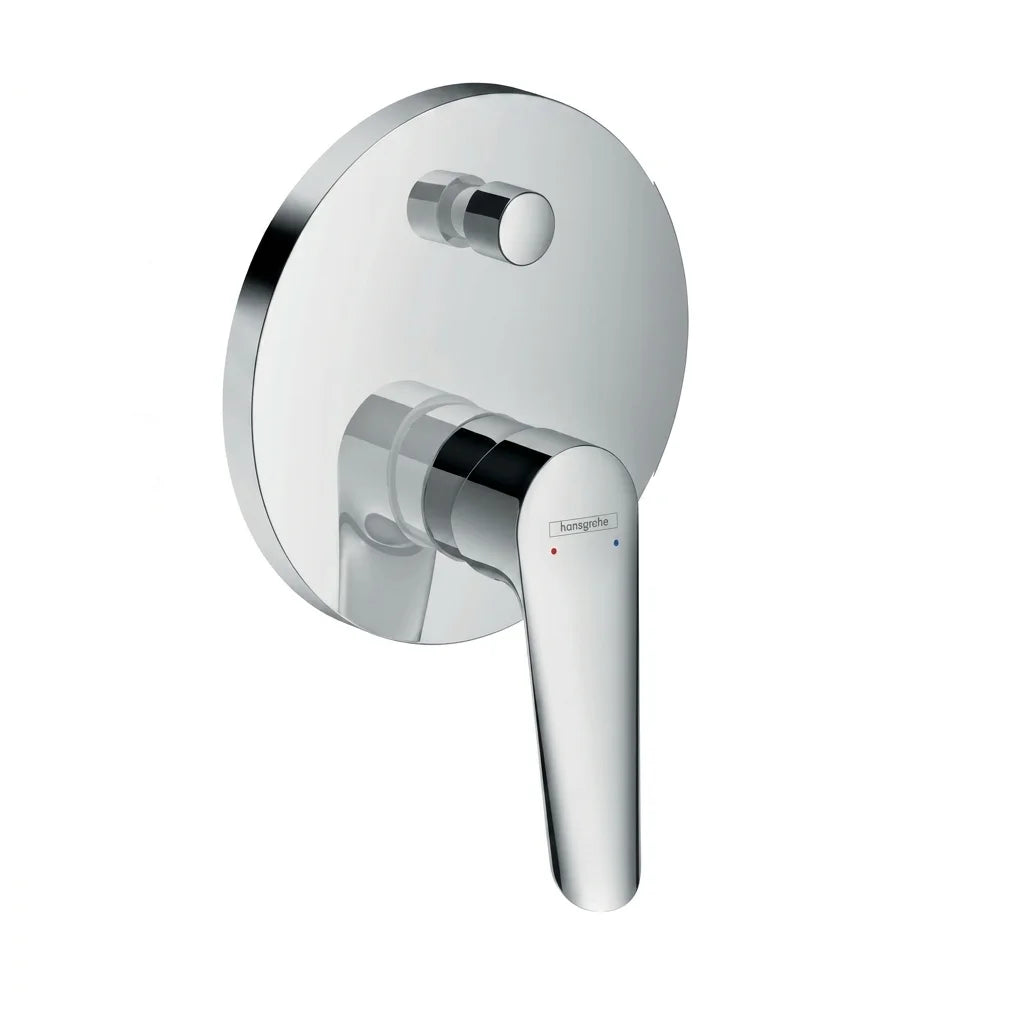

Hansgrohe Logis E Single Lever Bath Mixer (Chrome) 71404000

Hansgrohe Logis E Single Lever Bath Mixer (Chrome) 71404000

Description:

The Hansgrohe Logis E Single Lever Bath Mixer 71404000 is a wall-mounted concealed bath mixer designed for installation with the Hansgrohe iBox universal basic set. It features single-lever control, two functions and a Chrome finish.

Key Features:

• Two Functions: Controls two water outlets, with an automatic-reset diverter for switching between functions.
• Single-Lever Control: Ceramic cartridge provides smooth water-flow and temperature adjustment.
• Concealed Installation: Designed for concealed wall installation with a compatible Hansgrohe iBox universal basic set.
• Adjustable Temperature Limitation: Temperature limit can be adjusted according to installation requirements.

Specifications:

• Brand: Hansgrohe
• Series: Logis E
• Model / SKU: 71404000
• Finish: Chrome
• Product Type: Single Lever Bath Mixer
• Installation Type: Concealed / Wall-Mounted
• Functions: 2
• Control: Single Lever
• Cartridge: Ceramic
• Diverter: Automatic Reset
• Maximum Flow Rate: 29 l/min at 3 bar
• Minimum Operating Pressure: 1 bar
• Maximum Operating Pressure: 10 bar
• Connection Type: Basic Set
• Compatible Basic Set: Hansgrohe iBox universal
• Scope of Supply: Single lever bath mixer, function block, mounting material and assembly instructions
