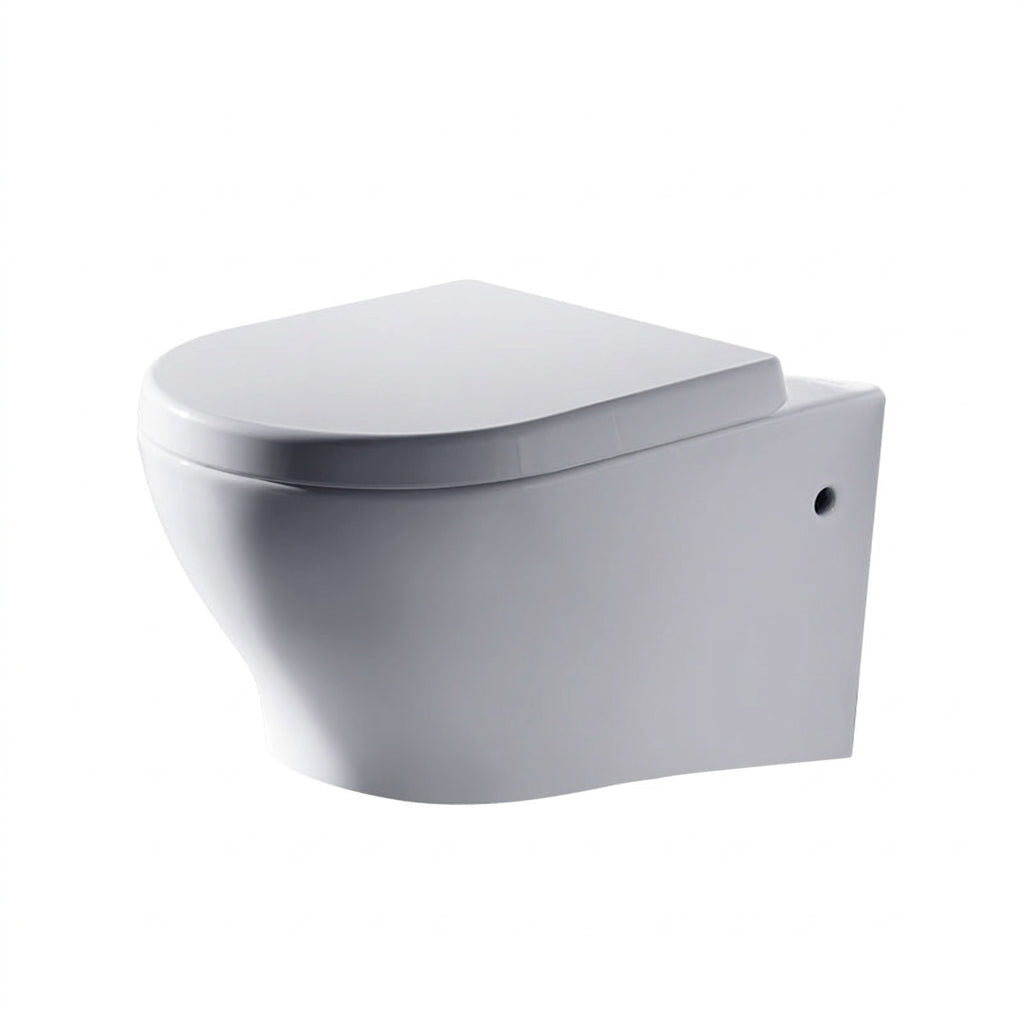

[Bundle Deal] Bravat Wall-hung Toilet C01017UW

BRAVAT Wall-Hung Toilet C01017UW + Geberit Sigma Concealed Frame System

Description:

Bring clean, space-saving design to the bathroom with the BRAVAT Wall-Hung Toilet C01017UW, complete with a high-performance Geberit Sigma Concealed Frame & Cistern System. Its washdown design, soft-close seat and concealed wall-hung installation provide a practical and streamlined solution for contemporary bathrooms.

Key Features:

• BRAVAT Wall-Hung WC Design:
  • Washdown WC: Designed for effective everyday flushing.
  • P-Trap Outlet: Horizontal waste connection suitable for concealed wall installations.
  • 230 mm Mounting Distance: Compatible with Geberit frames supporting 23 cm WC fastening distance.
• Clean & Contemporary Design:
  • Wall-Hung Installation: Keeps the floor beneath the WC clear for easier bathroom cleaning.
  • UF Soft-Close Seat: Supplied with a durable urea-formaldehyde seat and cover with soft-closing operation.
  • Fixing Kit Included: WC fixing components are supplied with the toilet.
  • Concealed Cistern Installation: Keeps the flushing system hidden behind the finished wall for a streamlined appearance.
• Geberit Sigma Concealed System:
  • Geberit Sigma Concealed Cistern & Frame: Provides structural support for the wall-hung WC while keeping the cistern and installation components concealed behind the finished wall.
  • Front Flush Actuation: Designed for use with compatible Geberit Sigma actuator plates.
  • Adjustable Flush Volume: Full and reduced flush volumes can be configured according to the selected Sigma concealed cistern and installation requirements.

Technical Specifications

• WC Brand: BRAVAT
• WC Product Code: C01017UW
• Product Type: Wall-Hung WC Bundle
• Colour: White
• Mounting Type: Wall-Hung
• WC Type: Washdown
• Outlet: P-Trap / Horizontal
• WC Manufacturer Flush Specification: 3.5 / 5 L

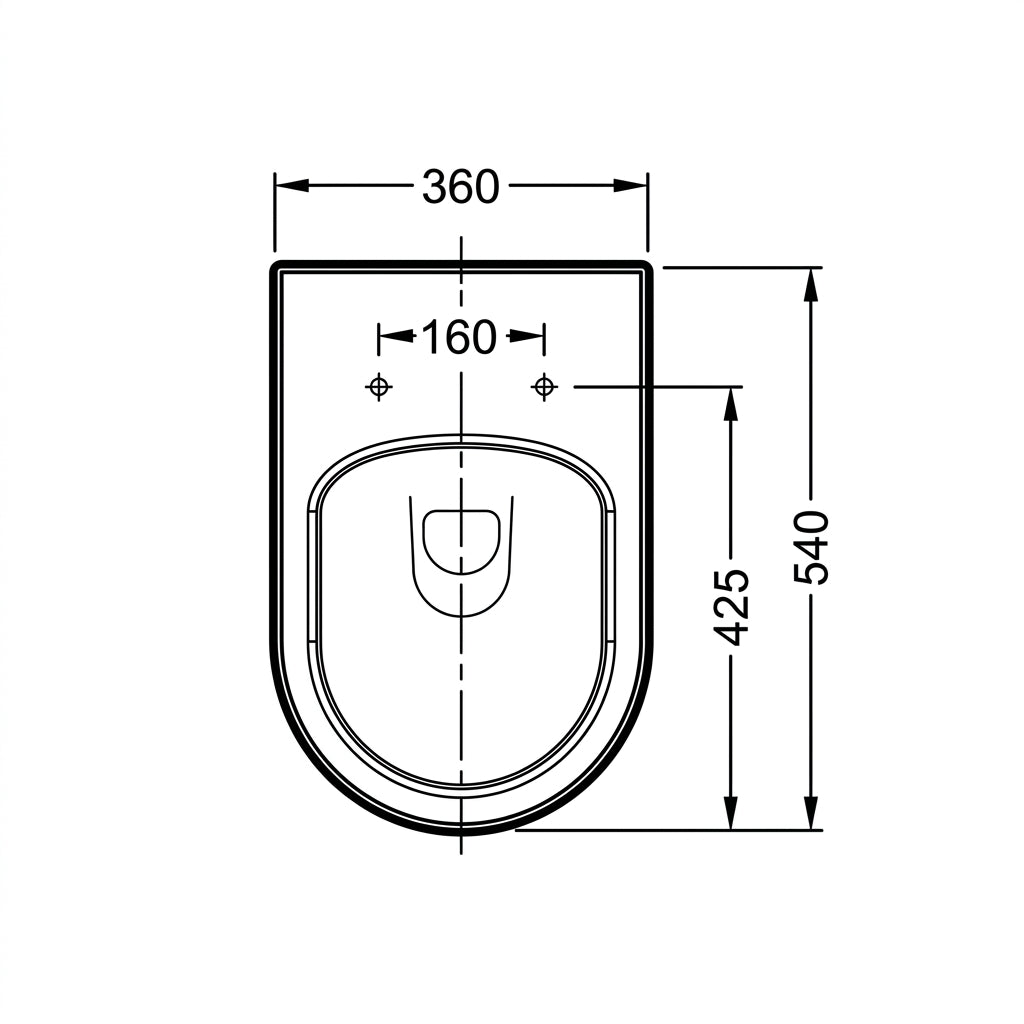

• WC Dimensions: 360 × 550 × 355 mm

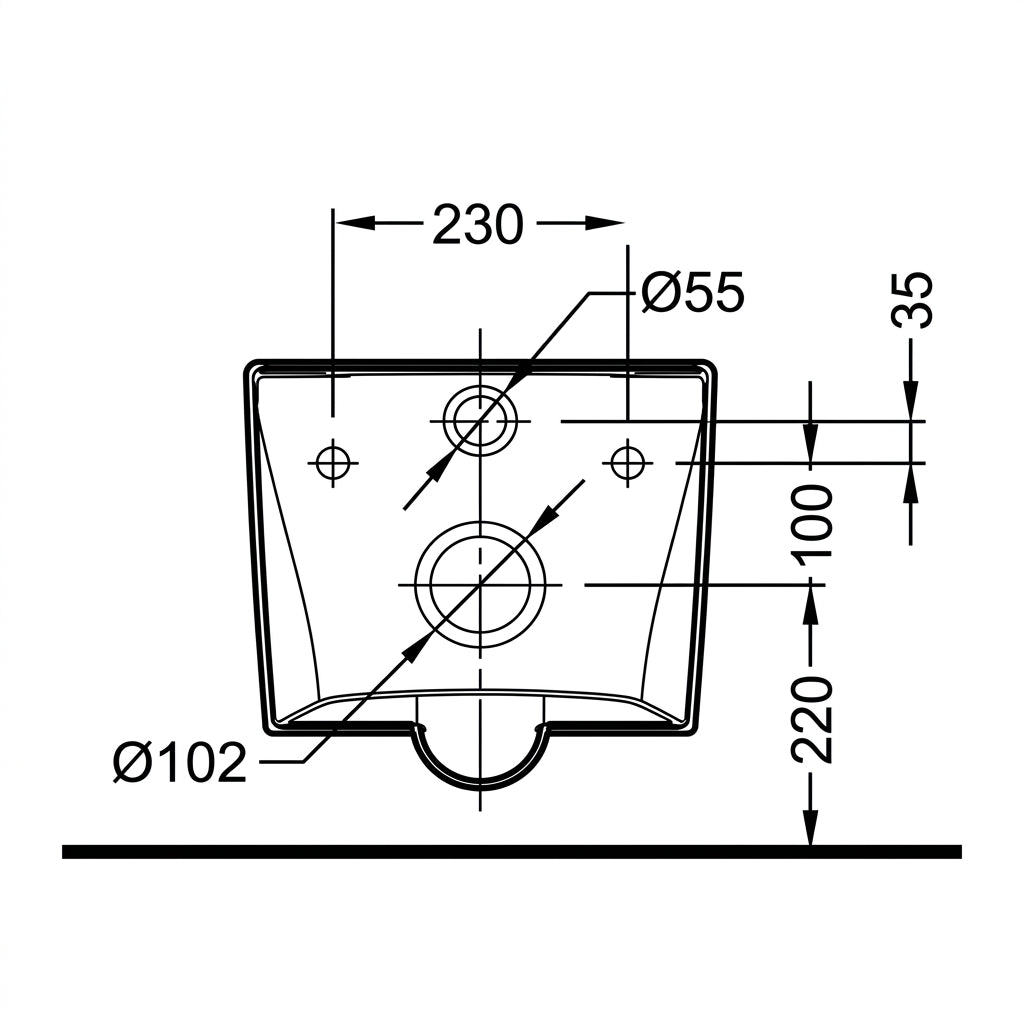

• Mounting Distance: 230 mm
• WC Seat: UF Soft-Close Seat & Cover
• Seat Function: Soft-Closing
• Fixing Kit: Included
• Cistern System: Geberit Sigma Concealed Cistern
• Installation System: Geberit Sigma Concealed Frame System
• Flush Actuation: Front Actuation
• Flush Operation: Dual Flush / Adjustable Flush Volume

Package Includes

1. BRAVAT Wall-Hung WC C01017UW
2. BRAVAT UF Soft-Close WC Seat & Cover
3. BRAVAT WC Fixing Kit
4. Geberit Sigma Concealed Cistern & Installation Frame System
5. Required WC Connection & Frame Installation Components
6. Selected Geberit Sigma Flush Actuator Plate
